21.1. Zonal Printers

What is zonal printing?

Zonal printing is a feature which allows you to print your orders as per your zones. for e.g., your kitchen items can print in the kitchen and bar item can print in the bar. This feature has no impact on ordering process, so nothing changes for the customer.

Printing flow and terminology

Tags: You can consider tags as middleman for the printing. tags bind printers and menu together. Its good practice to name the tags as per your zones for eg, you can create a tag for kitchen and one more for bar.

Printer: In this instruction we are using Foodship printer, and every Foodship printer has a unique Cloud ID. If you don’t know the cloud ID for your printer, please reach out to Foodship support and we will help you.

Flow: Menu connects with the tags → tags connect with printer, so when an item is ordered, the system looks for the tag attached to the menu item and handover the print to the tag and then tag sends the print to the connected printer.

How to create tags

InfoWarningSuccessTip

Path to create tags: Login to your admin panel by going to www.domain-name.com/login → Settings →

Printers setting→ Enable zonal printing → Add printer tag → Add new printer tag

In the video example below, I have created a tag called COFFEE

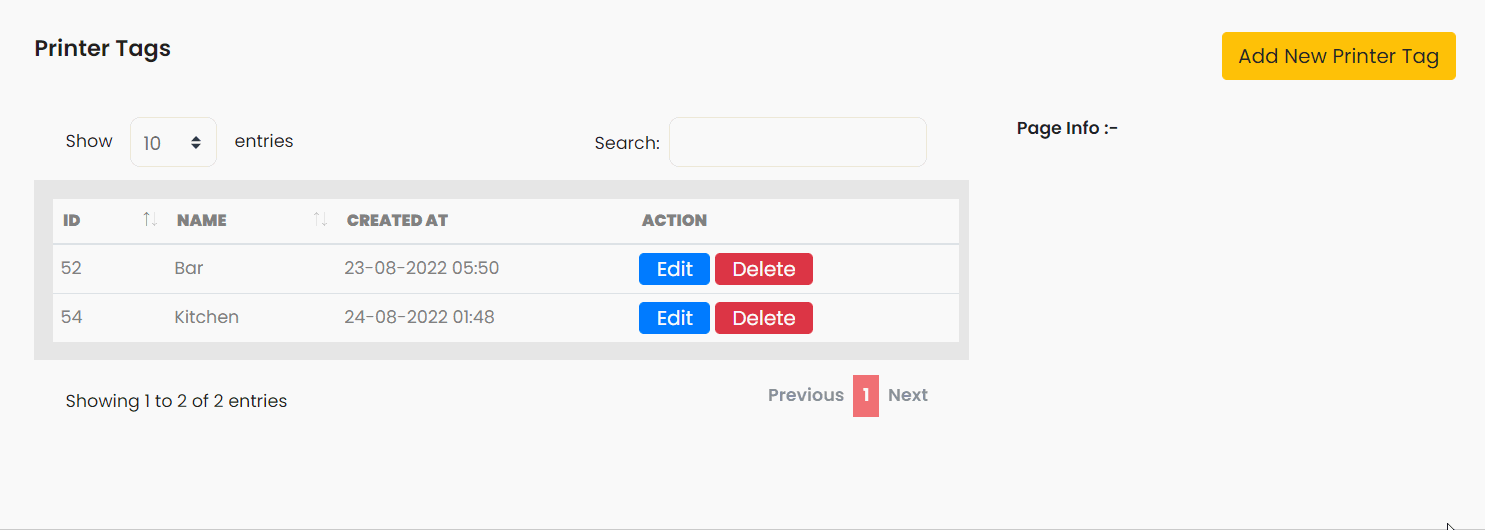

Creating Tag in Foodship Online Ordering System

Creating Tag in Foodship Online Ordering System

How to add a printer?

InfoWarningSuccessTip

Path to add printer: Login to your admin panel by going to www.domain-name.com/login → Settings → Printers setting→ in zonal printing → Add printer

In the screenshot below I have added a printer for coffee machine and attached the coffee tag to it.

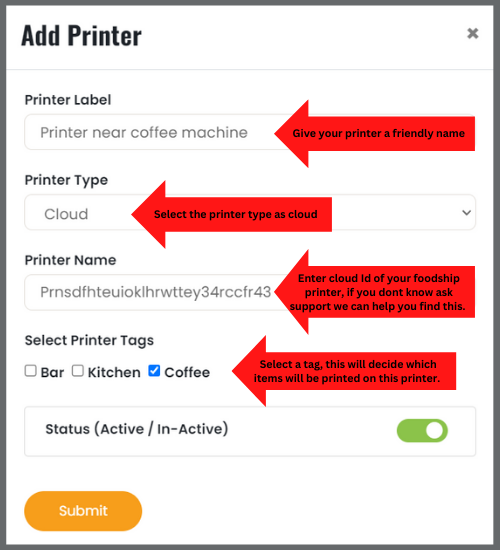

Adding a new printer and connecting with tag.

Adding a new printer and connecting with tag.

How to connect tag to the menu?

There are two ways to connect tag to the menu,

Attach a tag when creating a new menu item

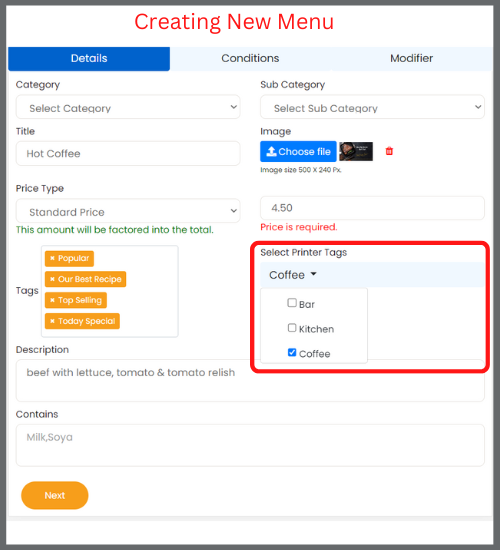

Attaching tag to new menu item

Attaching tag to new menu item

Attach tag to an existing item

InfoWarningSuccessTip

Path to attach tags to an existing item: Login to your admin panel by going to www.domain-name.com/login → Settings → Printers setting→ Zonal printing → Menu without tag list

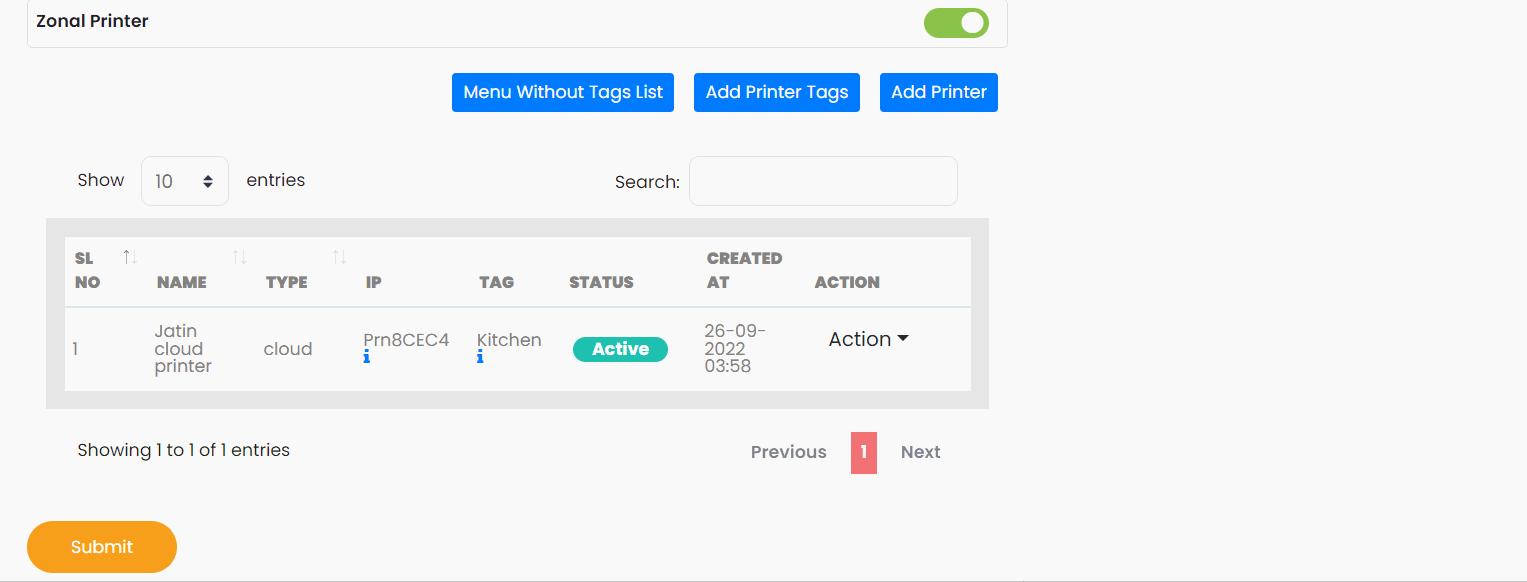

Attaching a tag to an existing item

Attaching a tag to an existing item

Ensure to click submit to save your zonal printing settings and now your orders shall print as per zonal tags.
